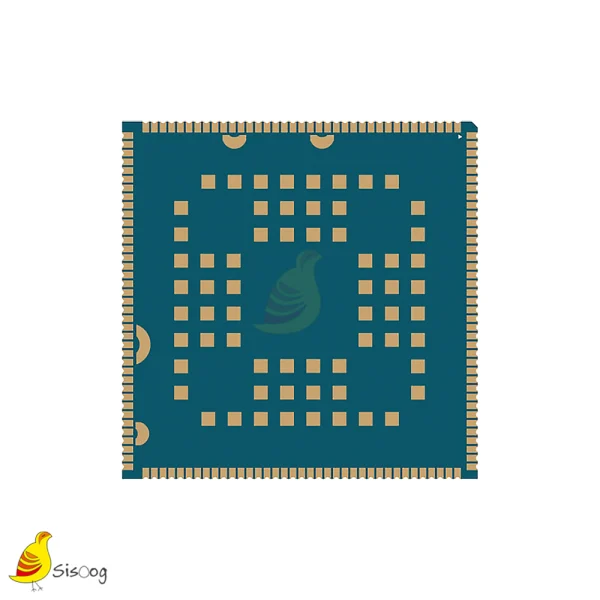

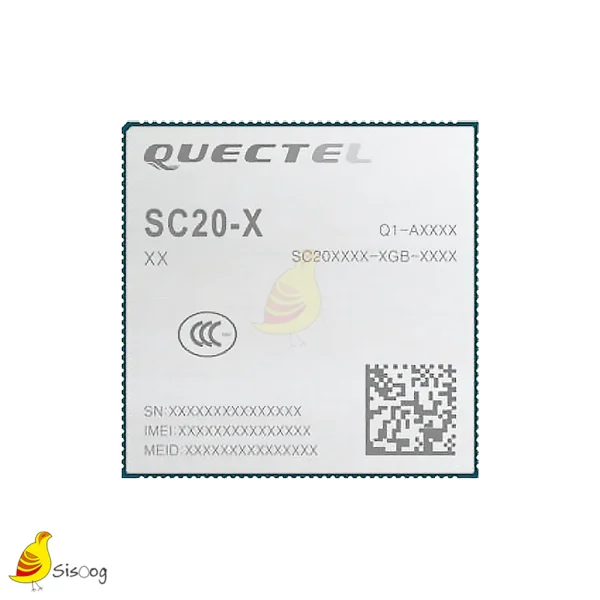

ماژول SC20-E Quectel کویکتل

توضیحات

ماژول SC20 کویکتل بی شک یکی از خارق العاده ترین ماژولهای این شرکت میباشد.

شما با داشتن ماژول SC20 ، یک موبایل اندرویدی دارید که به راحتی میتوانید در کارهایی با پردازش های سنگین نیز استفاده نمایید.

در مطلب با عنوان بررسی ماژول SC20 سعی کردیم برخی از قابلیتهای آن را مشخص نماییم.

ماژول SC20 نسل جدیدی از ماژول‌های LTE شرکت کویکتل است.که شامل هفت نوع SC20-CE, SC20-E, SC20-A, SC20-AU, SC20-J, SC20-EU و SC20-W می‌شود. قابلیت Wi-Fi و BT تنها در نسخه SC20-W وجود دارد.









SC20 is Quectel’s new generation of multi-mode Smart LTE Cat 4 module with built-in Android OS. It contains seven variants: SC20-CE, SC20-E, SC20-A, SC20-AU, SC20-J, SC20-EU and Wi-Fi & BT only version SC20-W.

SC20 delivers maximally 150Mbps downlink and 50Mbps uplink data rates based on LTE network, and additionally supports wireless communication via IEEE 802.11 a/b/g/n (IEEE 802.11 b/g/n for SC20-CE/SC20-W by default) and BT4.1 LE (BT4.2 on Android 7.1 or later versions). It is ideal for both industrial and consumer applications requiring high data rate and high-speed internet access. SC20 is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 3G or LTE coverage.

SC20 supports multiple-input multiple-output (MIMO) technology. The use of multiple antennas at the receiver end at the same time and on the same frequency band greatly minimizes errors and optimizes the data speed. The module also combines high-speed wireless connectivity with embedded multi-constellation and high-sensitivity GNSS (GPS, GLONASS and BeiDou) receiver for positioning.

A rich set of interfaces (such as LCM, Camera, Touch Panel, MIC, SPK, UART, USB, I2C) extend the applicability of the module to a wide range of M2M applications, such as MID, PND, POS, router, data card, in-vehicle solutions, smartphone, digital signage, security and industrial PDA.

Key Benefits
